Snap Seam Standing Seam

Adaptive standing seam roof panel.

Snap Seam Standing Seam
Request Pricing

Ultra-Performance, Ultimate Protection

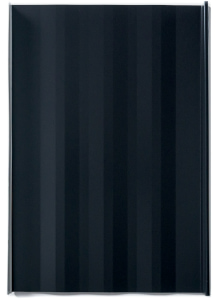

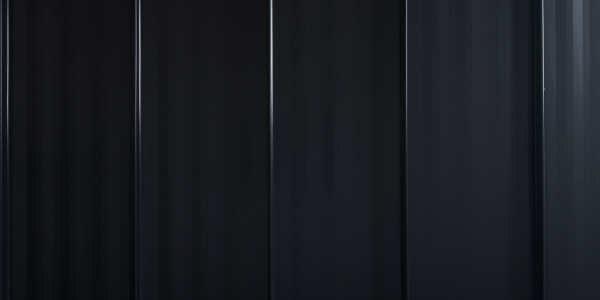

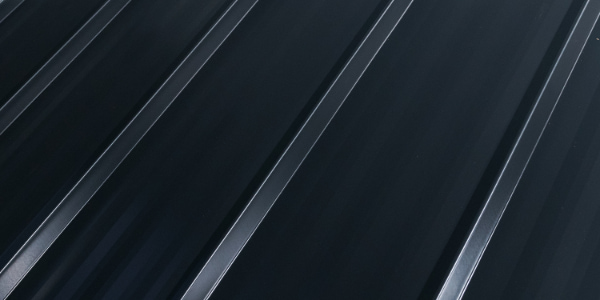

Snap Seam is built from the core for performance – from high-strength alloy core and multi-layer baked-on-paint, to snap-lock design and UL90 clips. Snap Seam has rugged 1.75″ high ribs, enabling Snap Seam to be installed over open framing or solid deck structures.

Design & Size

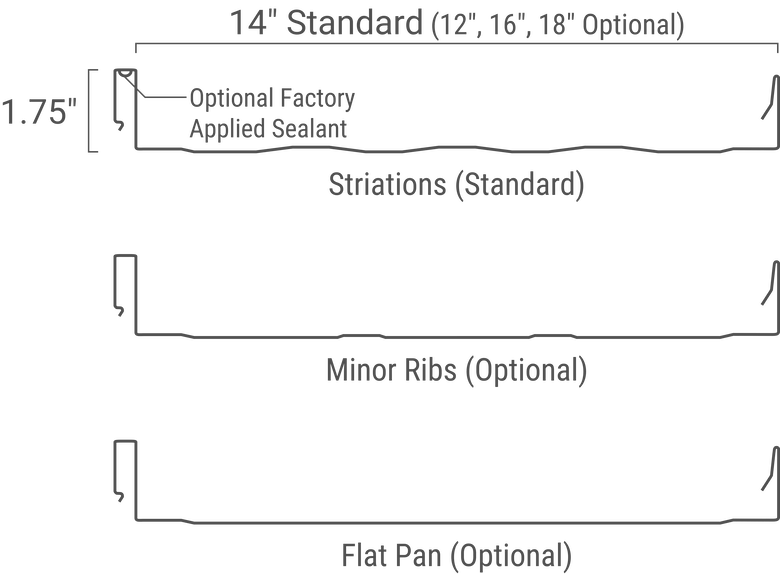

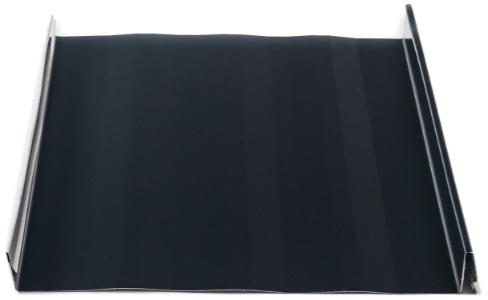

We provide Snap Seam custom cut to the inch per specifications. Any length is available from 3′ up to 45′, or onsite to any length. Snap Seam’s design features 1.75″ high snap-lock style ribs – standard width is 14″ with additional options for 12″, 16″, or 18″. Thickness options include 26 and 24 gauge as standard and 22 gauge optional.

Size

14" Width Standard (Coverage); 12", 16", 18" Optional
Cut to Inch From 3'-45'

Gauge & Weight

26 Gauge - 0.94-1.06 Lb / Sq Ft (check width)
24 Gauge - 1.22-1.38 Lb / Sq Ft (check width)

Warranty & Finish

Painted Snap Seam carries a 40 year paint warranty and 30 year fade/chalk warranty. Unpainted Galvalume carries a 25 year warranty. The painted option is a baked on enamel paint over primer and Galvalume. The non-painted Galvalume option is 45% zinc and 55% aluminum with a clear acrylic overcoat.

Finish & Warranty

Painted: 40 Years
Galvalume: 25 Years

Reflectivity

25-67%
Energy Star® Rated

Purpose & Use

Snap Seam is one of our most versatile standing seam systems. Whether you need it for a home, business, or commercial application; Snap Seam may fit the bill.

Snap Seam can be installed over solid decking on slopes as low as 1:12 and open framing on slopes as low as 3:12.

Taller ribs with optional factory applied sealant provide strength and lock out the weather.

Minimum Slope

1:12 over solid decking, 3:12 over open framing

Substrate

Solid Deck
Open Frame

Intent

Residential
Architectural

Colors
Pure White (26ga)
Stone (26ga)
Sierra Tan (26ga)
Brown (26ga)
Light Gray (26ga)
Charcoal (26ga)
Bronze (26ga)
Black (26ga)
Bright Red (26ga)
Barn Red (26ga)
Burgundy (26ga)
Hawaiian Blue (26ga)
Gallery Blue (26ga)
Forest Green (26ga)
HD Black (26ga Premium)
HD Forest Green (26ga Premium)
HD Charcoal (26ga Premium)
HD Barn Red (26ga Premium)
HD Bronze (26ga Premium)
Copper Penny (26ga Premium)
Galvalume (Non-Painted)
Regal White (24ga)
Bone White (24ga)
Sandstone (24ga)
Almond (24ga)
Sierra Tan (24ga)
Buckskin (24ga)
Medium Bronze (24ga)
Mansard Brown (24ga)
Dark Bronze (24ga)
Dove Gray (24ga)
Slate Gray (24ga)
Charcoal Gray (24ga)
Matte Black (24ga)
Hartford Green (24ga)
Forest Green (24ga)
Hemlock (24ga)
Patina Green (24ga)
Aged Copper (24ga)
Teal Blue (24ga)
Colonial Red (24ga)
Terra Cotta (24ga)
Brilliance Red (24ga, Premium)
Burgundy (24ga)
Deep Blue Sea (24ga)
Pacific Blue (24ga)
Slate Blue (24ga)
Champagne (24ga, Premium)
Metallic Copper (24ga, Premium)
Preweathered Galvalume (24ga, Premium)
Bright Silver (24ga, Premium)

Painted Snap Seam® finishes are Energy Star rated, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Energy Star®

Painted Snap Seam finishes are Energy Star® rated, reflecting 25-67% of the sun’s rays.
