Roser Cleo Tile

Fired clay appearance, less the weight

Request Pricing

Strength of the Empire

Roser Cleo Tile is a budget friendly stone coated metal tile roofing with the appearance of a rugged Roman barrel tile. A heavy gauge 26 gauge steel core with a corrosion resistant zinc-aluminum protective layer ensures strength and longevity.

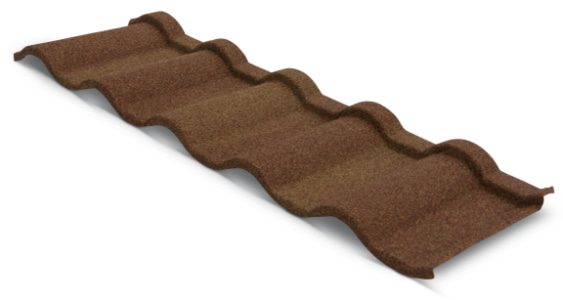

Cleo Tile Product Rotile P001 Panel Side Angle

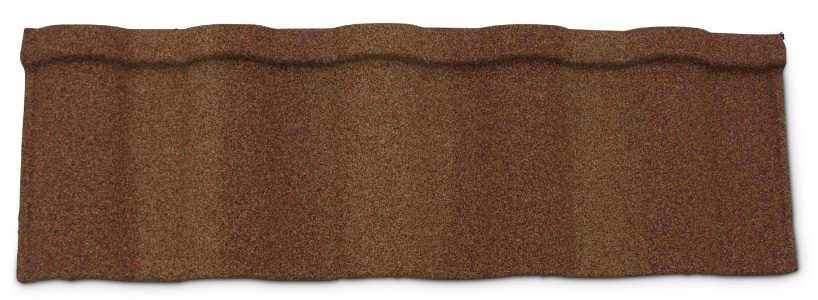

Cleo Tile Product Rotile P002 Panel Overhead

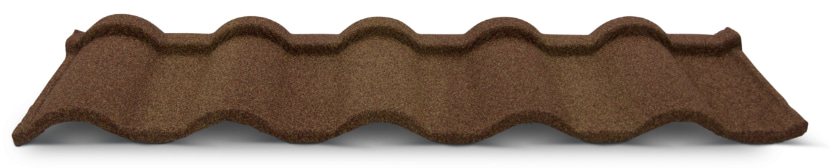

Cleo Tile Product Rotile P003 Panel Front Angle

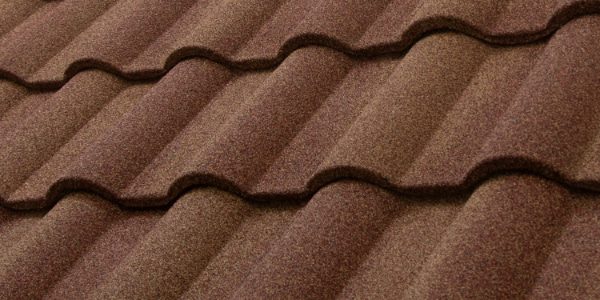

Cleo Tile Product Rotile P004 Assembly Side Angle

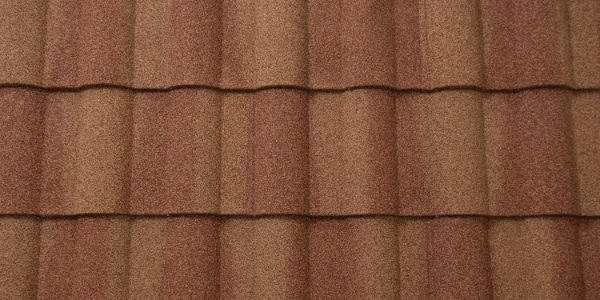

Cleo Tile Product Rotile P005 Assembly Overhead

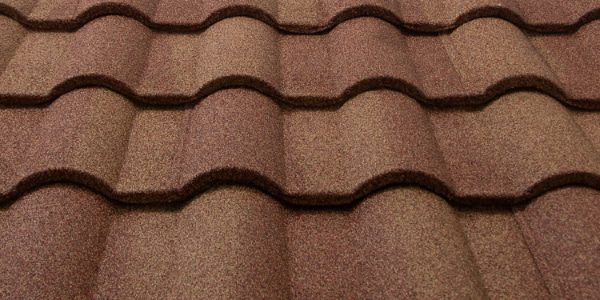

Cleo Tile Product Rotile P006 Assembly Front Angle

Design & Size

We provide Cleo Tile by the roofing square (100 square feet). Each shingle is 16.77″ high by 51.89″ wide and covers 14.25″ high x 49.6″ wide once installed. To cover one square requires 20.4 Cleo Tile panels.

Size

Actual: 16.77" high by 51.89" wide
Coverage: 14.25" high by 49.6" wide

Gauge & Weight

26 Gauge – 1.4 lb / Sq Ft

Warranty & Finish

Cleo Tile carries a 50 year limited warranty which covers manufacturing defects, 120 MPH wind, and hail. This warranty is fully transferable to subsequent homeowners for up to 10 years after installation. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat and Aluminum-Zinc alloy coated steel.

Finish & Warranty

50 Years Limited
Unlimited Transfers in First 10 Years

Reflectivity

Vented Airspace Provides Insulation Layer

Purpose & Use

Tight fitting top and side flanges and time-tested fasteners into the vertical leg of the panel make Cleo Tile a great choice for roofs as low as 3:12. Cleo Tile is designed for installation on solid deck applications – with or without a batten airspace.

You’ll find Cleo Tile most often on residential and light commercial applications.

Cleo is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3:12

Substrate

Solid Deck – Direct to Deck
Solid Deck – Over Battens

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors

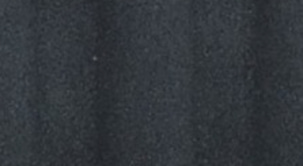

Charcoal

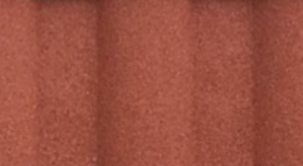

Garnet

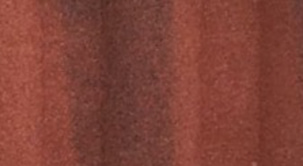

Mission Red
Mission Gold

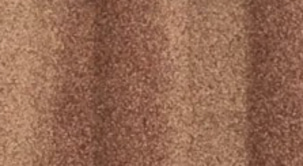

Vista Cotta
Terra Cotta

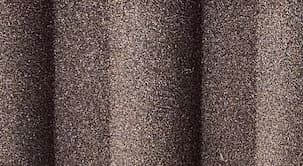

Timberwood

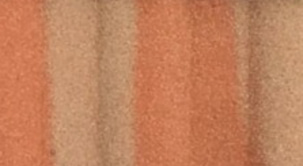

Spanish Orange (Special Order)

Cleo Tile® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
NOA# 19-0325.01
See report for requirements
Testing: Florida Approvals
FL# 17411.1
See report for requirements
Hi-Reflective

Cleo Tile® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
