Cedar Creek Shake

Inspired by nature.

Request Pricing

Natural Textures, Rugged Durability

Cedar Creek Shake from True Nature offers an incredible cedar shake shingle with the strength of 28-gauge steel. Cedar Creek interlocks on all 4 sides for superior longevity and strength. Smart engineered features including pre-drilled holes, water shedding channels, and integrated top-lock make Cedar Creek an excellent choice for your project.

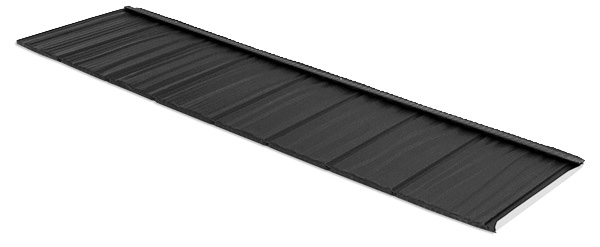

Cedar Creek Shake Product Tnshk P001 Panel Side Angle

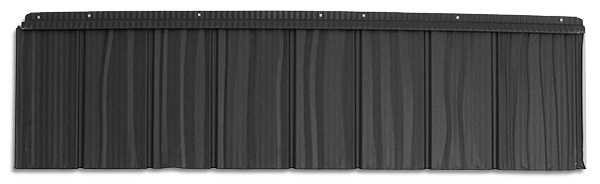

Cedar Creek Shake Product Panel Overhead
Cedar Creek Shake Product Tnshk P003 Panel Front Angle

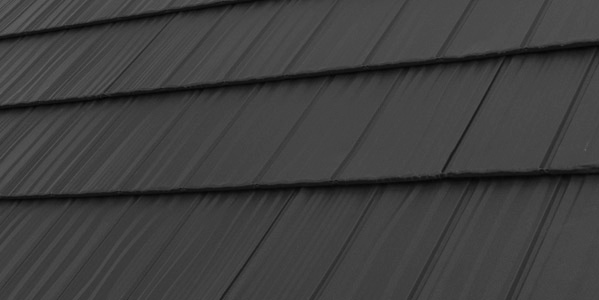

Cedar Creek Shake Product Tnshk P004 Assembly Side Angle

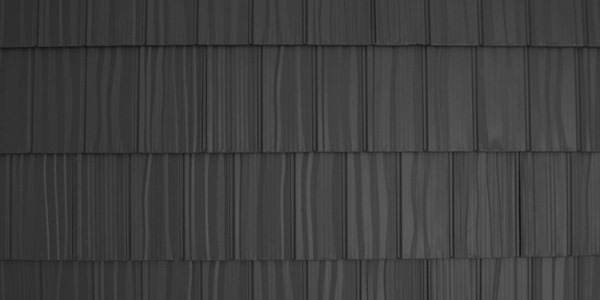

Cedar Creek Shake Product Tnshk P005 Assembly Overhead

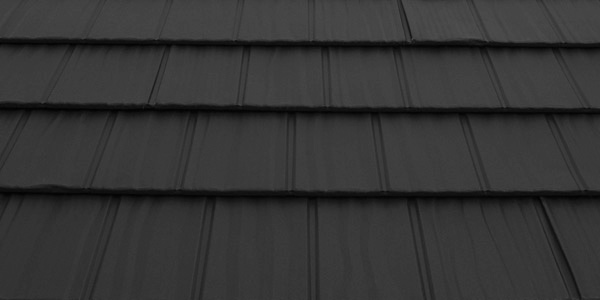

Cedar Creek Shake Product Tnshk P006 Assembly Front Angle

Design & Size

We provide Cedar Creek Shake in 1/2 SQ boxes (50 square feet). Each box contains 12 shingles. Each shingle is 13.5625” high by 50.75” wide and covers 12” high x 50” wide once installed.

cedar-creek-shake-product-dimensions

Size

Actual: 13.5625” high by 50.75” wide
Coverage: 12” high by 50” wide

Gauge & Weight

28 Gauge - 1.00 lb / Sq Ft

Warranty & Finish

Cedar Creek Shake carries a non-prorated lifetime limited warranty, 40 year paint warranty, and 30 year fade/chalk warranty. Finish options include Kynar 500® / Hylar 5000® PVDF or SMP Siliconized-Modified-Polyester baked-on enamel paint over primer and Galvalume (zinc-aluminum) coated steel. This warranty is transferable to subsequent homeowners for up to 50 years after installation but becomes a pro-rated warranty.

Finish & Warranty

Lifetime Limited
50 Years Transferable

Reflectivity

6-46%
4 Colors Hi-Reflective

Purpose & Use

A 4-way interlocking design and hidden fasteners make Cedar Creek Shake a great choice for roofs as low as 3:12. As with most painted metal shingles, True Nature is designed for installation on solid deck applications.

Cedar Creek Shake is most often chosen for residential applications but also functions at a high level for light commercial applications as well.

A high tensile steel core allows Cedar Creek to easily handle the high winds in Florida.

Minimum Slope

3:12

Substrate

Solid Deck

Intent

Residential
Light Commercial

Colors

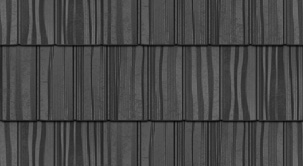

Ebony (Signature Matte)

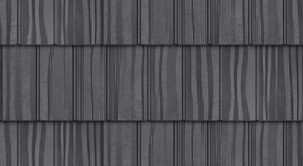

Shadow Deep Gray (Signature Matte)

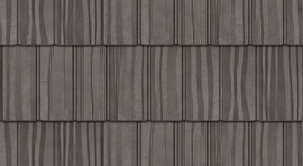

Burnished Slate (Signature Matte)

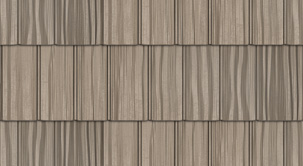

Harvest Cedar (Expressence)

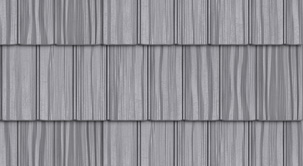

Silver Springs (Expressence)

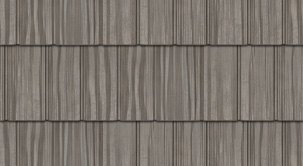

Antique Brown (Expressence)

Four Cedar Creek Shake® finishes meet Hi-Reflective requirements, reflecting 28-46% of the sun’s rays, while Ebony and Shadow Deep Gray still offer impressive reflectivity from 6-14%. The air gap created by the thickness of the shake also adds an insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 1897
215 MPH Wind Uplift
Testing: Florida Approvals
FL# 40929.1
Over 7/16" min. thick OSB or 15/32-inch, 32/16 span rated, 4-ply, CDX plywood
Hi-Reflective

Four Cedar Creek Shake® finishes are Hi-Reflective certified, reflecting 28-46% of the sun’s rays.
