Sentry Shingle

A simple low-profile metal shingle.

Request Pricing

Protect What Matters

Sentry Shingle combines high tech metal shingle technology with a minimalistic curved stamp pattern. Sentry interlocks on all 4 sides for superior wind and storm protection.

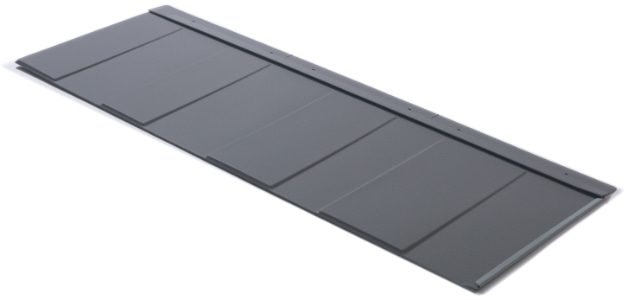

Sentry Shingle Product Sshng P001 Panel Side Angle

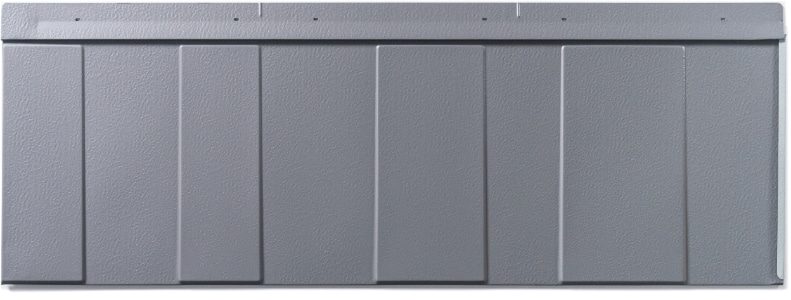

Sentry Shingle Product Sshng P002 Panel Overhead

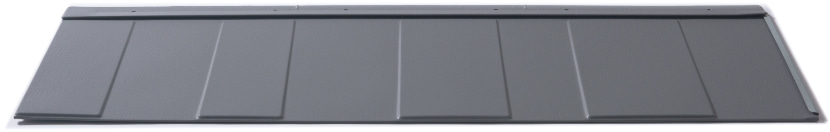

Sentry Shingle Product Sshng P003 Panel Front Angle

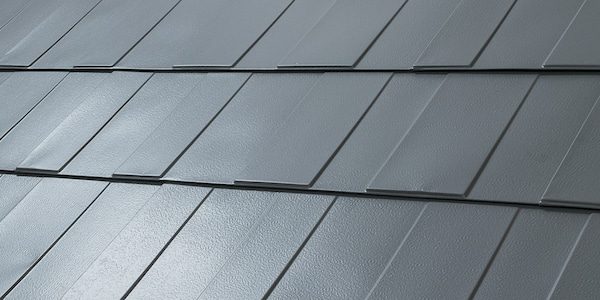

Sentry Shingle Product Sshng P004 Assembly Side Angle

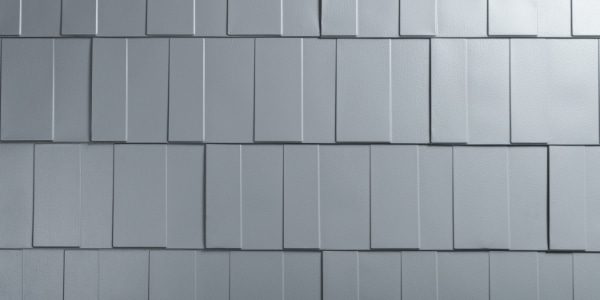

Sentry Shingle Product Sshng P005 Assembly Overhead

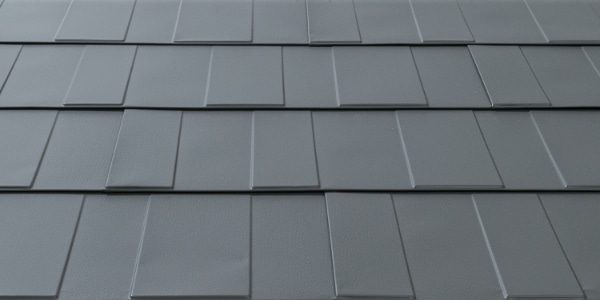

Sentry Shingle Product Sshng P006 Assembly Front Angle

Design & Size

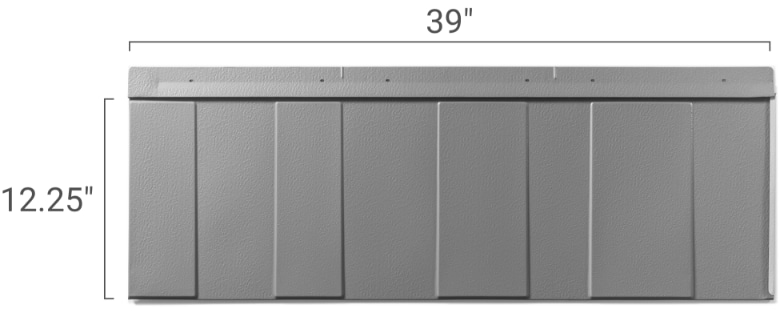

We provide Sentry Shingle in 1/2 SQ boxes (50 square feet). Each box contains 15 shingles. Each shingle is 14.2″ high by 39.5″ wide and covers 12.25″ high x 39″ wide once installed.

Size

Actual: 14.2" high by 39.5" wide
Coverage: 12.25" high by 39" wide

Gauge & Weight

29 Gauge - 0.76 lb / Sq Ft

Warranty & Finish

Sentry Shingle carries a lifetime limited warranty and 30 year fade/chalk warranty. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel. This warranty is transferable to subsequent homeowners for up to 40 years after installation.

Finish & Warranty

Lifetime Limited
40 Years Transferable

Reflectivity

25-54%
6 Hi-Reflective Colors

Purpose & Use

A 4-way interlocking design and hidden fasteners make Sentry Shingle a great choice for roofs as low as 3:12. As with most painted metal shingles, Sentry is designed for installation on solid deck applications.

Sentry Shingle is most often chosen for residential applications but also functions at a high level for light commercial applications as well.

A high tensile steel core allows Sentry Shingle to easily handle the high winds in Florida. (not approved for HVHZ / High Velocity Hurricane Zones).

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code

Intent

Residential
Light Commercial

Colors

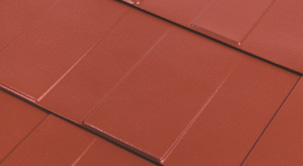

Mission Red

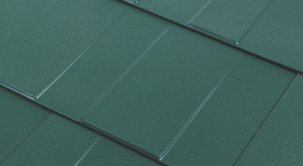

Evergreen

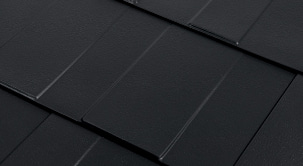

Black
Copper Penny

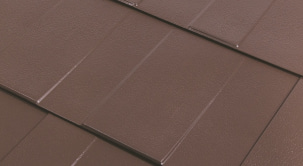

Timber

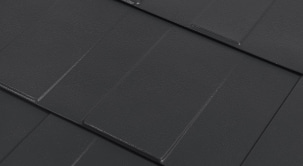

Charcoal

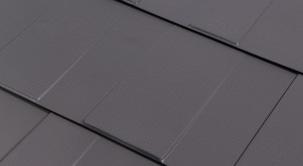

Gunmetal

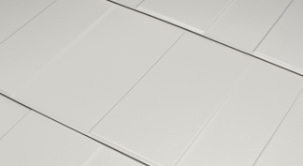

Stone

Six Sentry Shingle® finishes are Hi-Reflective certified. All eight meet Hi-Reflective requirements, reflecting 25-54% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 17418.1
Over 15/32" min. thick plywood or .42 min. specific gravity wood plank
Hi-Reflective

Six Sentry Shingle® finishes are Hi-Reflective certified. All eight meet Hi-Reflective requirements, reflecting 25-54% of the sun’s rays.
