Cee Purlin

A multipurpose secondary framing member.

Request Pricing

Purlin, Girt, and More

Cee Purlins are secondary steel framing members used for roof and wall support as well as a header, sill, brace, and more. Available in red oxide or galvanized, Cee Purlins are available cut to length.

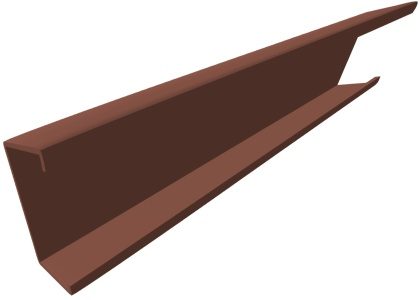

Cee Purlin Product Fce P001 Component Side Angle Red Oxide

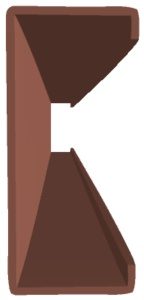

Cee Purlin Product Fce P002 Component Front Red Oxide

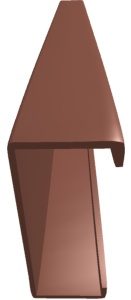

Cee Purlin Product Fce P003 Component Front Angle Red Oxide

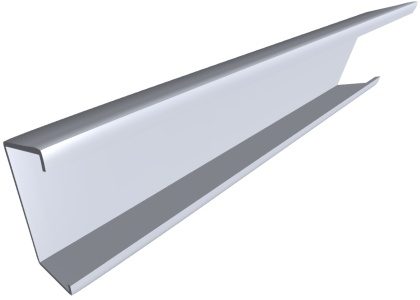

Cee Purlin Product Fce P004 Component Side Angle Galvanized

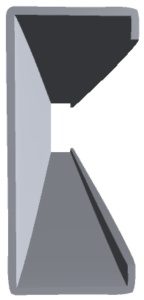

Cee Purlin Product Fce P005 Component Front Galvanized

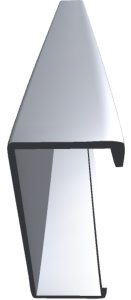

Cee Purlin Product Fce P006 Component Front Angle Galvanized

Design & Size

Cee Purlin lengths are cut to length from 6′-45′ in 1/8″ increments, though 20′ and 25′ are the most commonly chosen lengths.

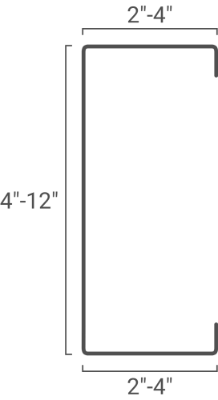

Size

Width Varies by Use
Length: 6'-45' in 1/8" Increments

Gauge & Weight

16ga: Weight Varies By Profile
14ga: Weight Varies By Profile
12ga: Weight Varies By Profile

Warranty & Finish

Metal framing components carry no specific warranty. Finish options include red iron (red oxide) and galvanized. Red iron is the more common finish and typically available in more sizes and gauges.

Purpose & Use

Cee Purlins are secondary steel framing members most commonly used as roof purlins, wall girts, and header, jamb, and sill for windows and doors on metal buildings. Welded together, they can be used as columns, braces, and ties.

The shape of Cee Purlins does not allow end lapping – they are butted together. Fastening is most commonly using bolts, though welding may be applicable in some construction methods.

Intent

Commercial
Industrial

Colors
Red Iron (Most Common - AKA Red Oxide)
Galvanized (Verify Availability)

Available finishes vary by branch, size, and gauge. Color accuracy is limited by scanning and viewing conditions.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.
