Endura Seam Standing Seam

Next generation standing seam roofing.

Endura Seam Standing Seam
Request Pricing

Class Leading Appearance

Endura Seam offers an unmistakable combination of innovation and strength, with thin-seam 1.5” high ribs at 15.625” apart. UL90 hidden Clip-Tech side laps allow unlimited expansion and contraction and seal out the weather. Endura Seam offers engineered dominance and the right features with available hidden fastened trim options and coordinating accessories. We manufacture Endura Seam on-site or in-facility.

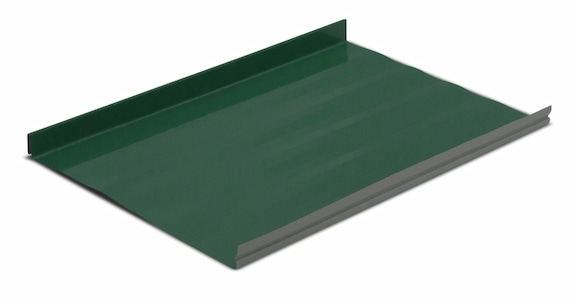

Endura Seam Product Bbm Es P001 Panel Side Angle

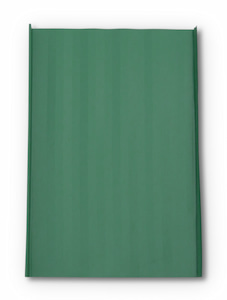

Endura Seam Product Bbm Es P002 Panel Overhead

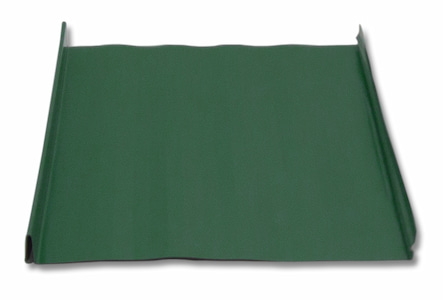

Endura Seam Product Bbm Es P003 Panel Front Angle

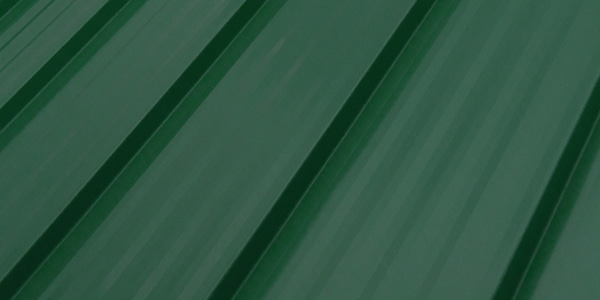

Endura Seam Product Bbm Es P004 Assembly Side Angle

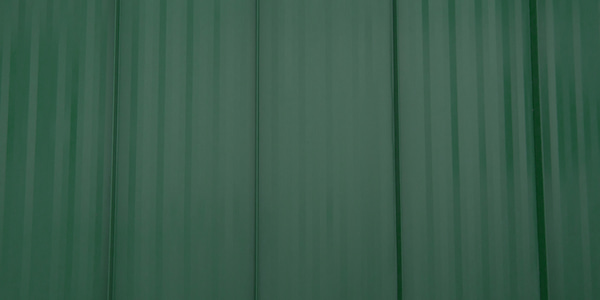

Endura Seam Product Bbm Es P005 Assembly Overhead

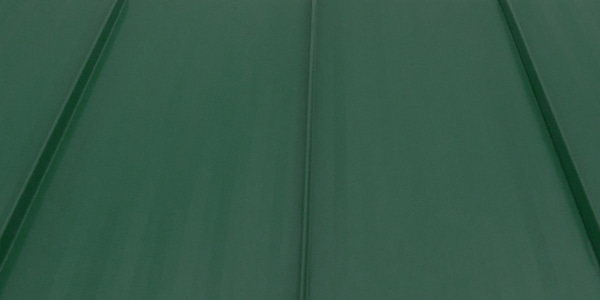

Endura Seam Product Bbm Es P006 Assembly Front Angle

Design & Size

We provide Endura Seam custom cut to the inch per specifications. Any length is available from 3’ up to 45’. Endura Seam’s design features 1.5” high clip-lock style ribs, spaced 15.625” on center. 12” and 16” wide panels are also available. Thickness options include 26 and 24 gauge.

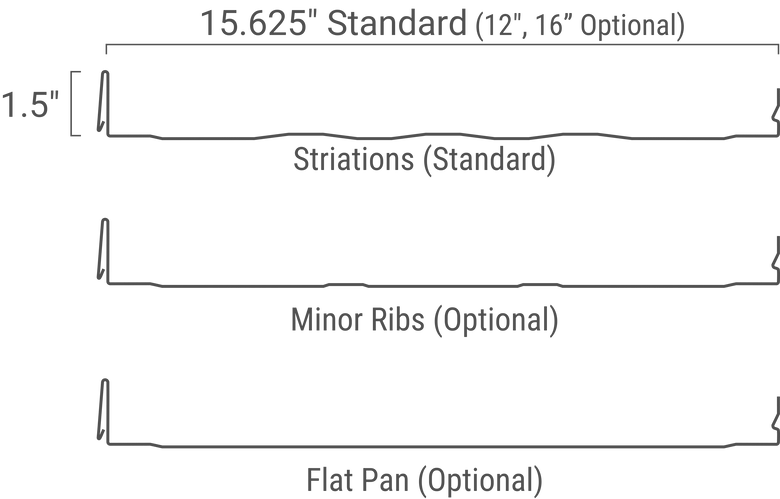

Endura Seam Product Bbm Es P007 Dimensions

Size

15.625", 16", 12" Width (Coverage)
Cut to Inch From 3'-45'

Gauge & Weight

26 Gauge - 1.06 Lb / Sq Ft
24 Gauge - 1.22 Lb / Sq Ft

Warranty & Finish

Painted Endura Seam carries a 50-year paint warranty, 50-year substrate warranty, and 30-year fade/chalk warranty and has primer and Galvalume substrate under the paint. Unpainted Galvalume carries a 45-year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat.

Finish & Warranty

Painted: 50 Years
Galvalume: 45 Years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

Endura Seam is an expansion-ready Clip-Tech standing seam metal roof system available in traditional, HD, and metallic packages. Narrow 1.5” locking ribs provide utility strength and a precise appearance.

Endura Seam is designed to be installed over solid decking – for open frame installations consider Snap Seam as an alternate.

Endura Seam standing seam is most chosen for residential and light commercial roofs, though it blends in well in most architectural design.

Minimum Slope

3:12

Substrate

Solid Deck

Intent

Residential
Architectural

Colors
Pure White (26ga)
Stone (26ga)
Sierra Tan (26ga)
Brown (26ga)
Light Gray (26ga)
Charcoal (26ga)
Bronze (26ga)
Black (26ga)
Bright Red (26ga)
Barn Red (26ga)
Burgundy (26ga)
Hawaiian Blue (26ga)
Gallery Blue (26ga)
Forest Green (26ga)
HD Black (26ga Premium)
HD Charcoal (26ga Premium)
HD Bronze (26ga Premium)
Copper Penny (26ga Premium)
Galvalume (Non-Painted)
Regal White (24ga)
Sandstone (24ga)
Almond (24ga)
Brownstone (24ga)
Medium Bronze (24ga)
Mansard Brown (24ga)
Dark Bronze (24ga)
Cityscape (24ga)
Slate Gray (24ga)
Matte Black (24ga)
Hartford Green (24ga)
Evergreen (24ga)
Teal Blue (24ga)
Colonial Red (24ga)
Terra Cotta (24ga)
Regal Red (24ga)
Brandywine (24ga)
Regal Blue (24ga)
Champagne (24ga, Premium)
Metallic Copper (24ga, Premium)
Weathered Zinc (24ga, Premium)
Silver (24ga, Premium)

Painted Endura Seam® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Hi-Reflective

Painted Endura Seam finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
