Titan-Loc 100 Standing Seam

An elegant hidden fastened metal roof panel.

Request Pricing

Simplicity in Design

Titan-Loc 100 is a charming standing seam roof system with 1″ high ribs at 16″ apart. A hidden fastening flange allows fast installation and locks out wind and water. Titan-Loc 100 is our most popular standing seam design. We manufacture Titan-Loc 100 on-site or in-facility.

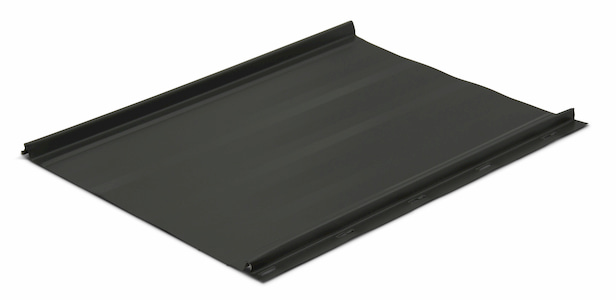

Titan Loc 100 Product Bbm Tl100 P001 Panel Side Angle

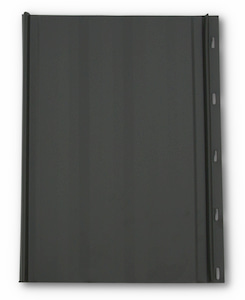

Titan Loc 100 Product Bbm Tl100 P002 Panel Overhead

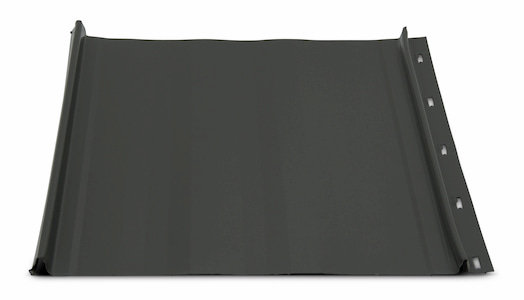

Titan Loc 100 Product Bbm Tl100 P003 Panel Front Angle

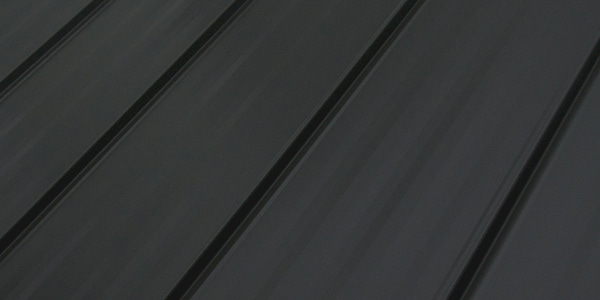

Titan Loc 100 Product Bbm Tl100 P004 Assembly Side Angle

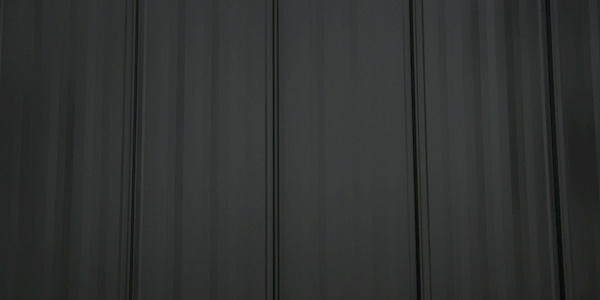

Titan Loc 100 Product Bbm Tl100 P005 Assembly Overhead

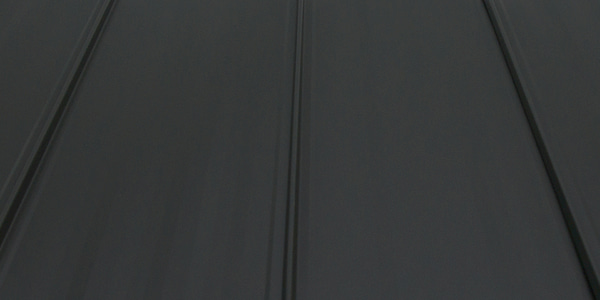

Titan Loc 100 Product Bbm Tl100 P006 Assembly Front Angle

Design & Size

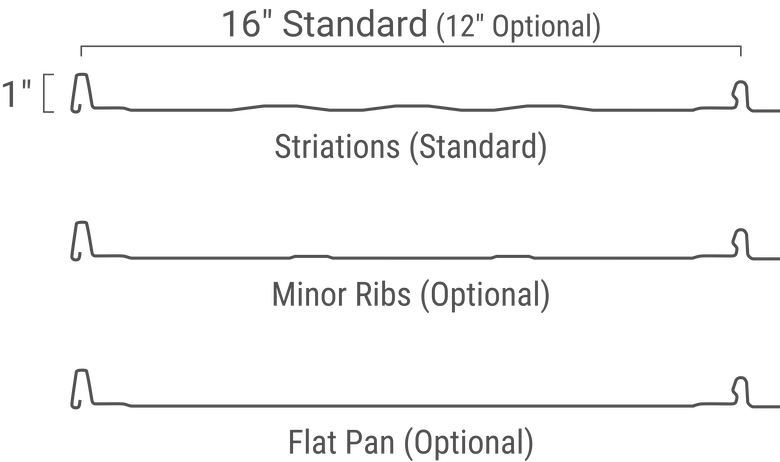

We provide Titan-Loc 100 custom cut to the inch per specifications. Any length is available from 3′ up to 45′. Titan-Loc 100’s design features 1″ high snap-lock style ribs, spaced 16″ on center. 12″ wide panels are available at some locations. Thickness options include 26 and 24 gauge.

Size

16", 12" Width (Coverage)
Cut to Inch From 3'-45'

Gauge & Weight

26 Gauge - 0.92 Lb / Sq Ft
24 Gauge - 1.19 Lb / Sq Ft

Warranty & Finish

Painted Titan-Loc 100 carries a 50-year paint warranty, 50-year substrate warranty, and 30-year fade/chalk warranty and has primer and Galvalume substrate under the paint. Unpainted Galvalume carries a 45-year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat.

Finish & Warranty

Painted: 50 Years
Galvalume: 45 Years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

Titan-Loc 100 is a versatile all-around standing seam metal roof system. It blends with almost any architecture with incredible strength and a life-time duration.

Titan-Loc 100 is designed to be installed over solid decking – for open frame installations consider Snap Seam as an alternate.

Titan-Loc 100 standing seam is most chosen for residential and light commercial roofs, though it blends in well in most architectural design.

Minimum Slope

3:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Architectural

Colors
Pure White (26ga)
Stone (26ga)
Sierra Tan (26ga)
Brown (26ga)
Light Gray (26ga)
Charcoal (26ga)
Bronze (26ga)
Black (26ga)
Bright Red (26ga)
Barn Red (26ga)
Burgundy (26ga)
Hawaiian Blue (26ga)
Gallery Blue (26ga)
Forest Green (26ga)
HD Black (26ga Premium)
HD Charcoal (26ga Premium)
HD Bronze (26ga Premium)
Copper Penny (26ga Premium)
Galvalume (Non-Painted)
Regal White (24ga)
Sandstone (24ga)
Almond (24ga)
Brownstone (24ga)
Medium Bronze (24ga)
Mansard Brown (24ga)
Dark Bronze (24ga)
Cityscape (24ga)
Slate Gray (24ga)
Matte Black (24ga)
Hartford Green (24ga)
Evergreen (24ga)
Teal Blue (24ga)
Colonial Red (24ga)
Terra Cotta (24ga)
Regal Red (24ga)
Brandywine (24ga)
Regal Blue (24ga)
Champagne (24ga, Premium)
Metallic Copper (24ga, Premium)
Weathered Zinc (24ga, Premium)
Silver (24ga, Premium)

Painted Titan-Loc 100® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Hi-Reflective

Painted Titan-Loc 100 finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
