Pinnacle Board and Batten Siding
Pinnacle Board and Batten siding is produced to ensure everyone can afford a quality steel siding system.
Enjoy Long Life Quality and Durability with Pinnacle Board Siding

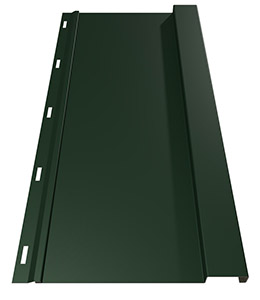

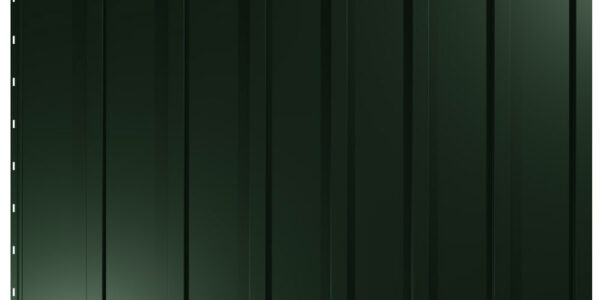

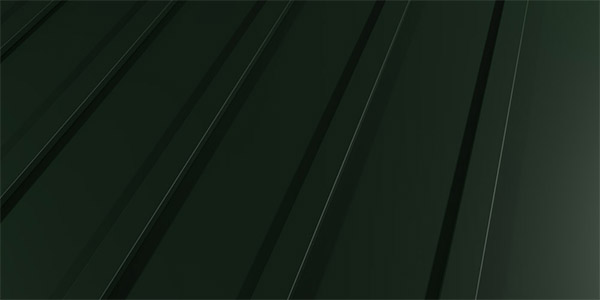

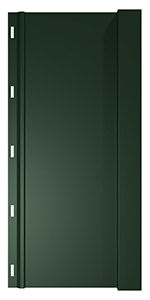

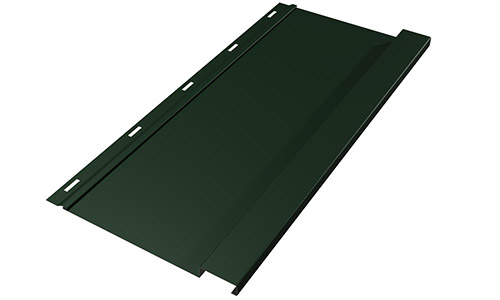

Discover the pinnacle of great looks and durability with Pinnacle Board and Batten Siding. The click-lock hidden fastener ensures a seamless exterior without the need for high maintenance. Each panel is custom created and cut to the half-inch and in lengths from 3′ – 35′ so you can clad your home with confidence. Available in many colors and finishes, this steel siding installs fast, ensuring high curb appeal and adding value to your home.
Design & Size

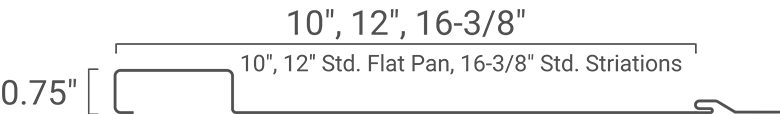

We provide PInnacle Board and Batten Siding custom cut to the half inch per specifications. Any length is available from 3′ up to 35′. These custom crafted panels come in 10″, 12″, and 16-3/8″ sizes. Thickness options include 29, 26, and 24 gauge.
Size
10", 12", 16-3/8" Width (Coverage)
Cut to Half-inch from 3'-35'
Gauge & Weight
29 Gauge - 0.80 lb / Sq Ft
26 Gauge - 1.00 Lb / Sq Ft
Warranty & Finish
Painted Pinnacle Board and Batten Siding carries a 50-year paint warranty, 50-year substrate warranty, and 30-year fade/chalk warranty and has primer and Galvalume substrate under the paint. Unpainted Galvalume carries a 45-year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat.
Finish & Warranty
Painted: 50 Years
Reflectivity
25-67%
Hi-Reflective
Purpose & Use
Pinnacle Board and Batten siding is most commonly chosen for residential and light commercial use. A steel substrate and hidden flange fastening system lock out wind and water.
Pinnacle Board and Batten siding is designed to be installed over solid decking, but can sometimes be installed over wood battens when going over uneven surfaces.
Minimum Slope
N/A
Substrate
Solid Deck
Intent
Residential
Light Commercial
Colors
Pure White (29ga)
Ivory (29ga)
Stone (29ga)
Clay (29ga)
Sierra Tan (29ga)
Brown (29ga)
Light Gray (29ga)
Charcoal (29ga)
Bronze (29ga)
Black (29ga)
Bright Red (29ga)
Barn Red (29ga)
Burgundy (29ga)
Hawaiian Blue (29ga)
Forest Green (29ga)
Gallery Blue (29ga)
HD Black (29ga Premium)
HD Forest Green (29ga Premium)
HD Charcoal (29ga Premium)
HD Barn Red (29ga Premium)
HD Bronze (29ga Premium)
Copper Penny (29ga Premium)
Galvalume (Non Painted) Pure White (26ga) Light Gray (26ga) Black (26ga) Bronze (26ga) Charcoal (26ga) HD Black (Premium 26ga) HD Bronze (Premium 26ga) HD Charcoal (Premium 26ga) Forest Green (26ga)Painted Pinnacle Board and Batten Siding® finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
