Dependable Long-Term Performance

The Mechanical Seam 100 panel system delivers dependable weather resistance and a clean architectural appearance for residential, commercial, and agricultural applications. Engineered with mechanically seamed vertical legs for enhanced moisture protection and long-term performance, Mechanical Seam 100 provides superior durability in demanding environments while maintaining the sleek profile expected from premium standing seam roofing systems.

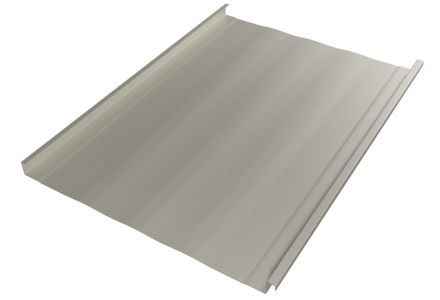

Mech Seam 100 Striations - Photo - Product Shot - 001 - Panel Side Angle

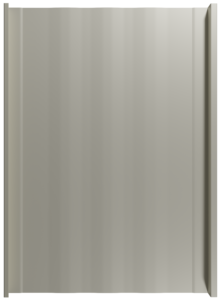

Mech Seam 100 Striations - Photo - Product Shot - 002 - Panel Overhead

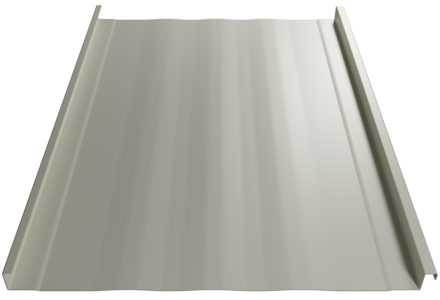

Mech Seam 100 Striations - Photo - Product Shot - 003 - Panel Front Angle

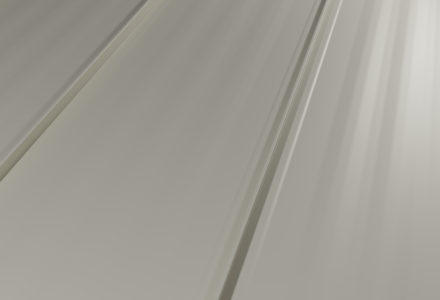

Mech Seam 100 Striations - Photo - Product Shot - 004 - Assembly Side Angle

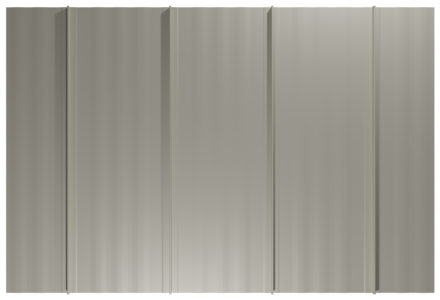

Mech Seam 100 Striations - Photo - Product Shot - 005 - Assembly Overhead

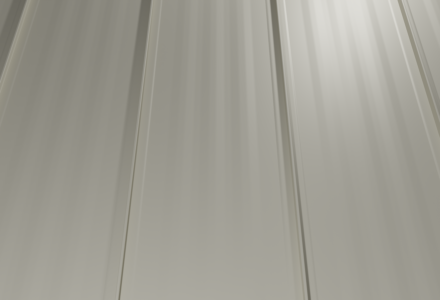

Mech Seam 100 Striations - Photo - Product Shot - 006 - Assembly Front Angle

Design & Size

We provide Mechanical Seam 100 custom cut to the inch per specifications. Any length is available from 3′ up to 45′. Mechanical Seam 100’s design features 1″ high ribs, spaced 17″ on center. Thickness options include 26 and 24 gauge as standard.

Standing Seam Product Mechanical Seam 100 P007 Dimensions

Size

17" Width (Coverage)
3'-40' (Cut to Inch)

Gauge & Weight

26 Gauge - 0.87 Lb/Sq Ft
24 Gauge - 1.12 Lb/Sq Ft

Warranty & Finish

Painted Mechanical Seam 100 carries a 50 year paint warranty and 30 year fade/chalk warranty. Unpainted Galvalume carries a 45 year warranty. The painted option is a baked on enamel paint over primer and Galvalume. The non-painted Galvalume option is 45% zinc and 55% aluminum with a clear acrylic overcoat.

Finish & Warranty

Painted: 50 years
Galvalume: 45 years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

Mechanical Seam 100 offers reliable structural integrity, reduced maintenance, and exceptional curb appeal for residential and commercial projects.

Mechanical Seam is designed for installation over solid decking and designed for use on slopes as low as 2.5:12.

Fixed clips allow for 40′ length, use floating clips for longer panels and end-lapping as needed.

Minimum Slope

2.5:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code (standard, HVHZ)

Intent

Residential
Commercial

Category

,

26ga Clay
Mechanical Seam 100 Clay
Mechanical Seam 1
Mechanical Seam 2
Mechanical Seam 3
Malcofsxs Roofing Steel Action11
Colors
Barn Wood (Premium Wood Print)
Corten Rust (Premium Wood Print)
Cypress Wood (Premium Wood Print)
Driftwood (Premium Wood Print)
Knot Wood Gray (Premium Wood Print)
Rosewood (Premium Wood Print)
Tiger Wood (Premium Wood Print)
Zebrano Gray (Premium Wood Print)
Galvalume
Barn Red (26ga)
Black (26ga)
Bright Red (26ga)
Bronze (26ga)
Brown (26ga)
Burgundy (26ga)
Charcoal (26ga)
Clay (26ga)
Copper Penny (26ga)
Gallery Blue (26ga)
Hawaiian Blue (26ga)
HD Barn Red (26ga)
Sierra Tan (26ga)
Stone (26ga)
HD Black (26ga)
HD Bronze (26ga)
HD Charcoal (26ga)
HD Green (26ga)
Light Gray (26ga)
Charcoal (24ga)
Dark Bronze (24ga)
Mansard Brown (24ga)
Matte Black (24ga)
Medium Bronze (24ga)
Patina Green (24ga)
Regal White (24ga)
Sandstone (24ga)
ULG Matte Black
ULG Matte Bronze
ULG Matte Pure White
Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Product Brochure
Quote Sheet
Installation
Trim Details
Hi-Reflective

Painted Mechanical Seam 100 finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
