Decra Shingle XD

Looks like asphalt, lasts like steel.

Request Pricing

When it Needs to Last

Decra Shingle XD stone coated metal shingles look so like heavy weight architectural shingles you may not discern the difference. A permanent metal roofing system, Decra Shingle XD features a vented airspace that insulates to reduce utility costs.

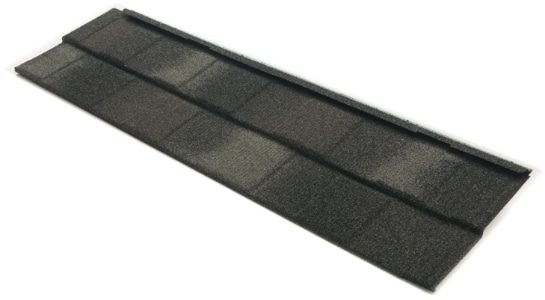

Decra Shingle Xd Product Dshngxd P001 Panel Side Angle

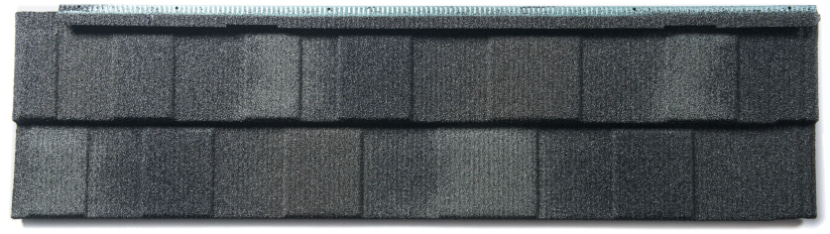

Decra Shingle Xd Product Dshngxd P002 Panel Overhead

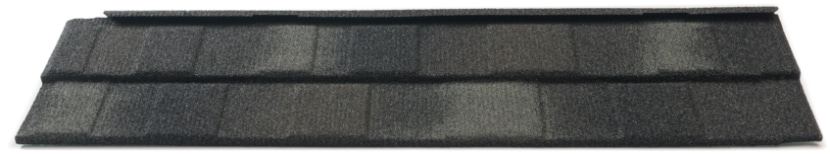

Decra Shingle Xd Product Dshngxd P003 Panel Front Angle

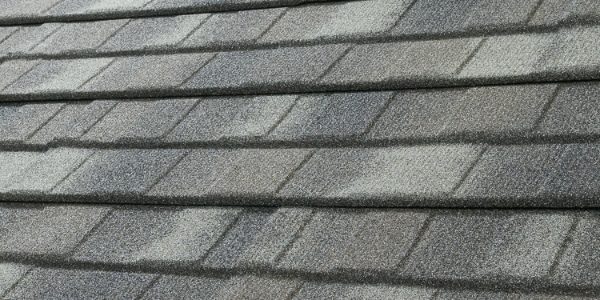

Decra Shingle Xd Product Dshngxd P004 Assembly Side Angle

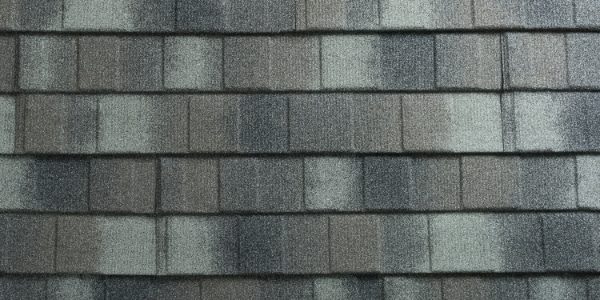

Decra Shingle Xd Product Dshngxd P005 Assembly Overhead

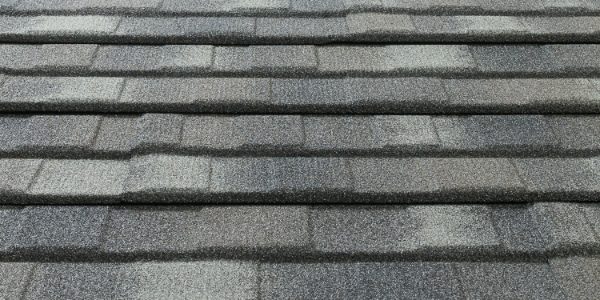

Decra Shingle Xd Product Dshngxd P006 Assembly Front Angle

Design & Size

We provide Decra Shingle XD by the roofing square (100 square feet). Each shingle is 14.125″ high by 52.375″ wide and covers 12.25″ high x 49.5″ wide once installed. To cover one square requires 23.8 Shingle XD panels.

Size

Actual: 14.125" high by 52.375" wide

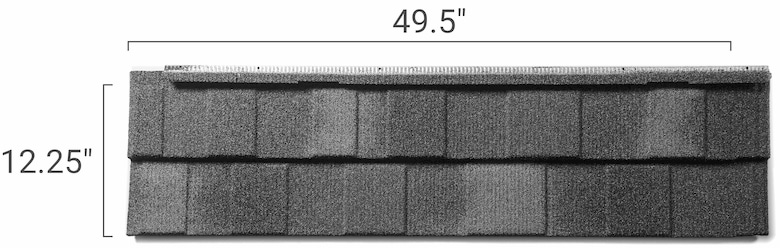

Coverage: 12.25" high by 49.5" wide

Gauge & Weight

28 Gauge – 1.35 lb / Sq Ft

Warranty & Finish

Decra Shingle XD carries a lifetime limited warranty – review the warranty sheet for details. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat, acrylic primer, and Aluminum-Zinc alloy coated steel.

Finish & Warranty

Lifetime Limited
50 Years Transferable

Reflectivity

CRRC Reflective Available by Special Order
Vented Airspace Provides Insulation Layer

Purpose & Use

An interlocking design and hidden fasteners make Decra Shingle XD a great choice for roofs as low as 4:12. Decra Shingle XD is designed for installation on solid deck applications.

Decra Shingle XD is most often chosen for residential applications but also functions at a high level for light commercial and church applications as well.

A high tensile steel core allows Decra Shingle XD to easily handle the high winds in Florida. (not approved for HVHZ / High Velocity Hurricane Zones).

Minimum Slope

4:12

Substrate

Solid Deck

Florida Approvals

Florida Building Code

Intent

Residential
Light Commercial

Colors

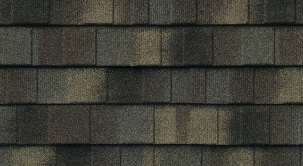

Classic Cobblestone

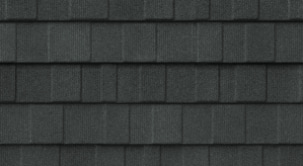

Midnight Eclipse

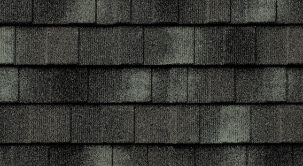

Natural Slate

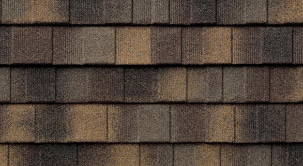

Old Hickory

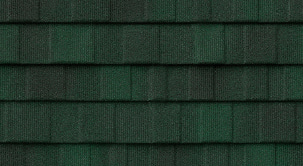

Woodland Green (Special Order)

None of the standard Decra Shingle XD® finishes are Hi-Reflective certified, though the system does feature a vented air space for insulation value. Several special order CRRC reflective colors are available.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 9759.1
See report for requirements
Hi-Reflective

None of the standard Decra Shingle XD® finishes are Hi-Reflective certified, though the system does feature a vented air space for insulation value. Several special order CRRC reflective colors are available.
