Dynamic Curb Appeal

Roser Piano Shingle is a budget friendly stone coated metal shingle with the appearance of a rugged laminated roof shingle. A heavy gauge 26 gauge steel and proven design combine to create a long lasting roof for any application.

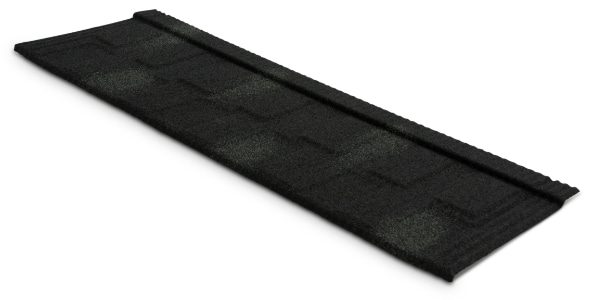

Piano Shingle Product Roshng P001 Panel Side Angle

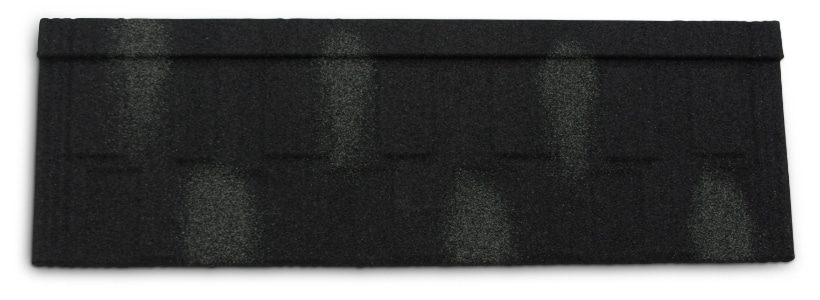

Piano Shingle Product Roshng P002 Panel Overhead

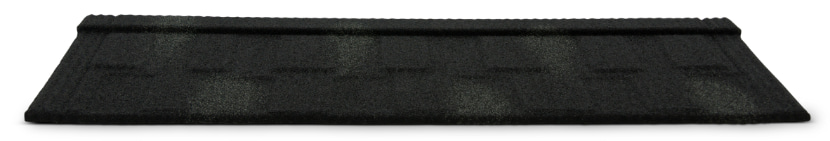

Piano Shingle Product Roshng P003 Panel Front Angle

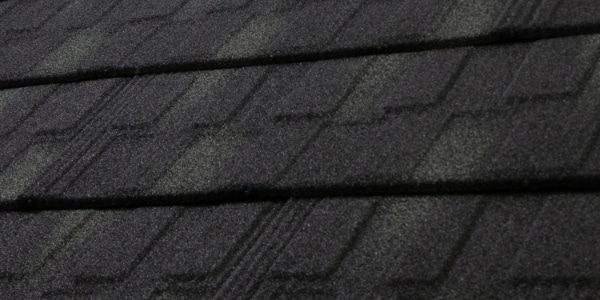

Piano Shingle Product Roshng P004 Assembly Side Angle

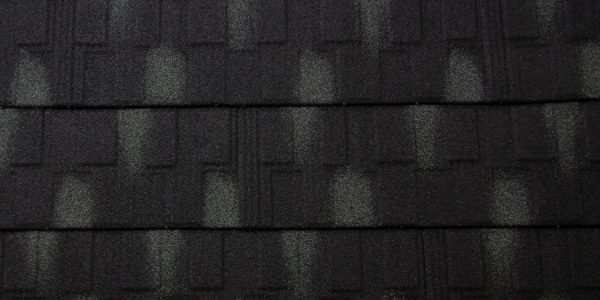

Piano Shingle Product Roshng P005 Assembly Overhead

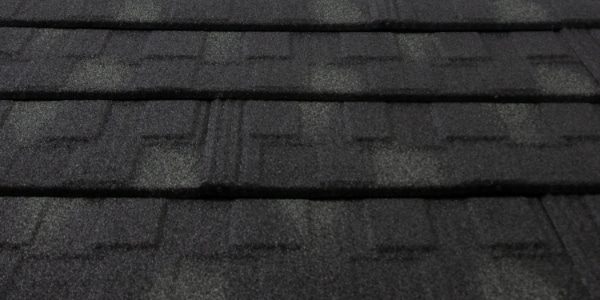

Piano Shingle Product Roshng P006 Assembly Front Angle

Design & Size

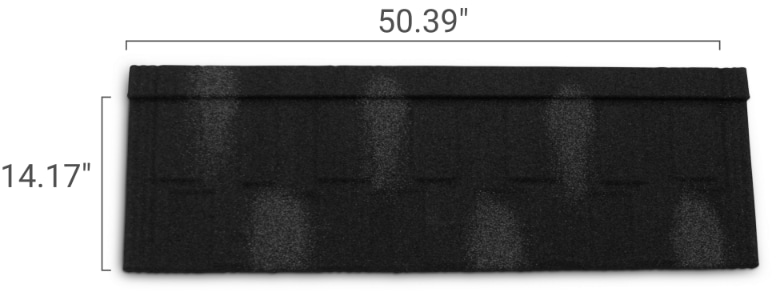

We provide Piano Shingle by the roofing square (100 square feet). Each shingle is 16.73″ high by 52.68″ wide and covers 14.17″ high x 50.39″ wide once installed. To cover one square requires 20.2 Piano Shingle panels.

Size

Actual: 16.73" high by 52.68" wide
Coverage: 14.17" high by 50.39" wide

Gauge & Weight

26 Gauge – 1.4 lb / Sq Ft

Warranty & Finish

Our Piano Shingle carries a 50 year limited warranty which covers manufacturing defects, wind damage up to 120MPH, and hail. This warranty is fully transferable to subsequent homeowners for up to 10 years following installation. This system’s ceramic coated stone granule finish is installed over a basecoat and Aluminum-Zinc alloy coated steel then topped with a protective clear coat.

Finish & Warranty

50 Years Limited
Unlimited Transfers in First 10 Years

Reflectivity

Vented Airspace Provides Insulation Layer

Purpose & Use

Tight fitting top and side flanges and time-tested fasteners into the vertical leg of the panel make Piano Shingle a great choice for roofs as low as 3:12. Piano Shingle is designed for installation on solid deck applications – with or without a batten airspace.

You’ll find Piano Shingle most often on residential and light commercial applications.

Piano is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3:12

Substrate

Solid Deck – Direct to Deck
Solid Deck – Over Battens

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors

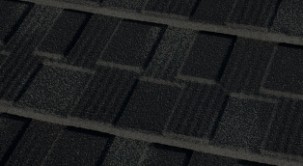

Black Pearl

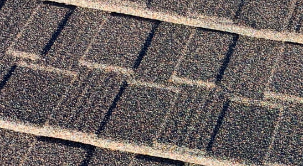

Weathered Timber I

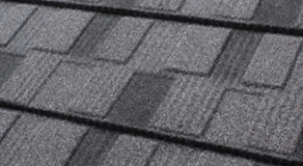

Shadow Wood

Piano Shingle® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
NOA# 19-0325.01
See report for requirements
Testing: Florida Approvals
FL# 17411.1
See report for requirements
Hi-Reflective

Piano Shingle® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
