Craftsman Plank
Install horizontal or vertical, our unique woodgrain embossment option adds strength and depth.
CRAFTSMAN PLANK SIDING - BEAUTY THAT ENDURES

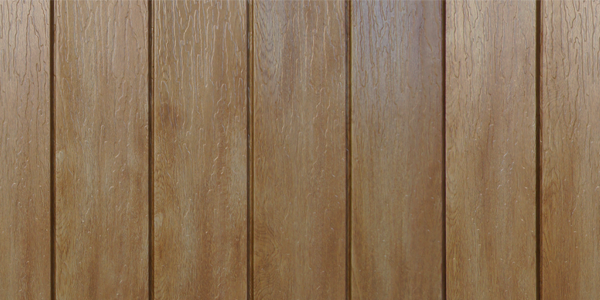

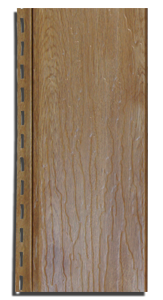

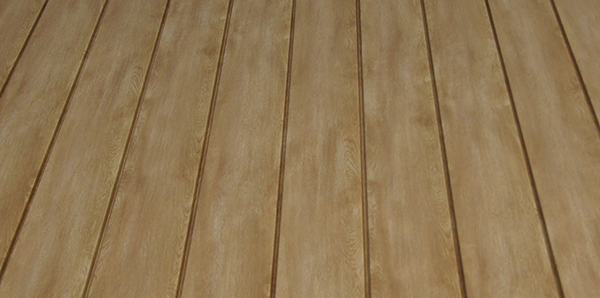

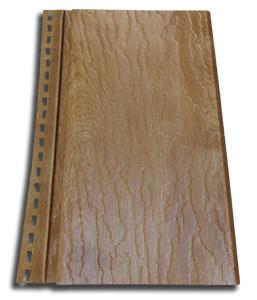

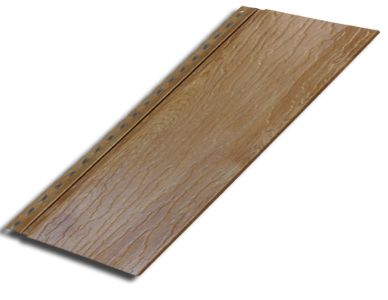

Craftsman Plank metal siding offers the visual appeal of full depth siding that has narrow grooves at the joint. The strength of steel brings ease and beauty at installation with hidden fasteners for a clean, modern look or the option for wood grain embossing to even further enhance the curb appeal.
Design & Size
We provide Craftsman Plank Siding custom cut to the half inch per specifications. Any length is available from 2′ up to 40′. These custom crafted panels come in 10.29″, 7.67″, and 6.12″ sizes. Thickness options include 29 and 26 gauge.
Size
R1 Profile: 10.29", 6.12", 7.67"
D2 Profile: 10" Width (Coverage)
Cut to Half-inch from 2'-35'
Gauge & Weight
29 Gauge - 0.80 lb / Sq Ft
26 Gauge - 1.00 Lb / Sq Ft
Warranty & Finish
Painted Craftsman Plank Siding carries a 50-year paint warranty, 50-year substrate warranty, and 30-year fade/chalk warranty and has primer and Galvalume substrate under the paint. Unpainted Galvalume carries a 45-year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat.
Finish & Warranty
Painted: 50 Years
Galvalume: 45 Years
Reflectivity
25-67%
Hi-Reflective
Purpose & Use
Craftsman Plank is most commonly chosen for residential and light commercial use. A steel substrate and hidden flange fastening system lock out wind and water.
Craftsman Plank is designed to be installed over solid decking, but can sometimes be installed over wood battens when going over uneven surfaces.
Minimum Slope
N/A
Substrate
Solid Deck
Intent
Residential
Light Commercial
Colors
Zebrano Gray (Premium Printcoat)
Barnwood (Premium Printcoat)
Cypress Wood (Premium Printcoat)
Tiger Wood (Premium Printcoat)
Drift Wood (Premium Printcoat)
Rose Wood (Premium Printcoat)
Knot Wood (Premium Printcoat)
Corten Rust (Premium Printcoat)
Pure White
Ivory
Stone
Clay
Sierra Tan
Brown
Light Gray
Charcoal
Bronze
Black
Bright Red
Barn Red
Burgundy
Hawaiian Blue
Gallery Blue
Forest Green
HD Black (Premium)
HD Forest Green (Premium)
HD Charcoal (Premium)
HD Barn Red (Premium)
HD Bronze (Premium)
Copper Penny (Metallic Premium)
Galvalume (Non-Painted)Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
