Pine-Crest Shake

More than a roof, an experience.

Request Pricing

Unmistakable Presence

Pine-Crest Shake points to the future – a luxurious stone coated finish provides long lasting UV protection while a 26 gauge Galvalume steel core delivers hurricane protection and hail resistance. Exceed your expectations with a modern yet classic steel shake roof.

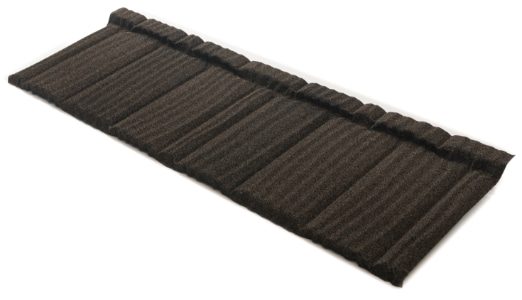

Pine Crest Shake Product Bshk P001 Panel Side Angle

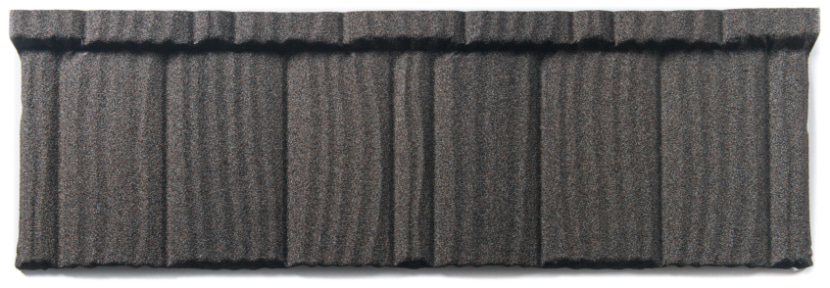

Pine Crest Shake Product Bshk P002 Panel Overhead

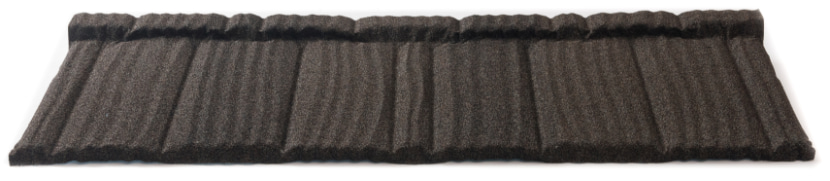

Pine Crest Shake Product Bshk P003 Panel Front Angle

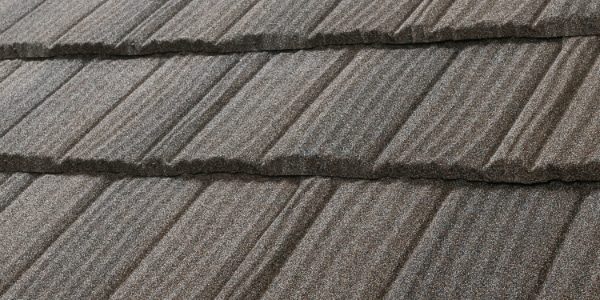

Pine Crest Shake Product Bshk P004 Assembly Side Angle

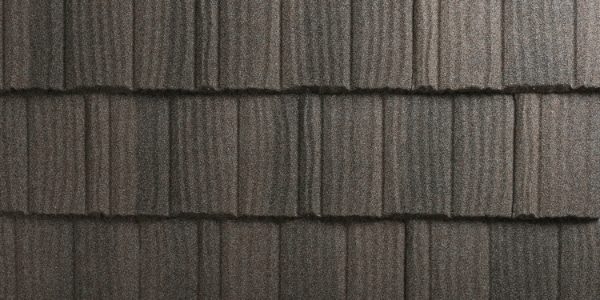

Pine Crest Shake Product Bshk P005 Assembly Overhead

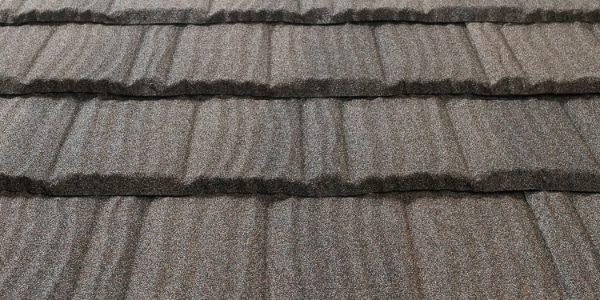

Pine Crest Shake Product Bshk P006 Assembly Front Angle

Design & Size

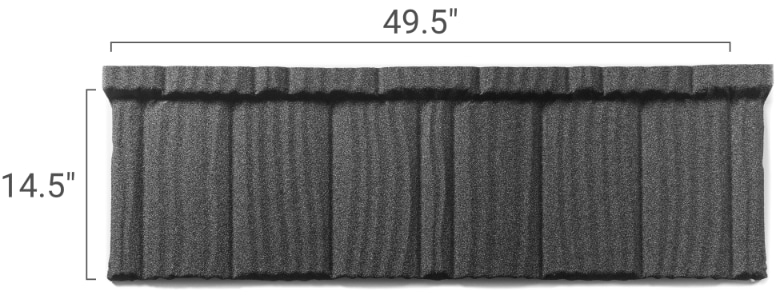

We provide Pine-Crest Shake by the roofing square (100 square feet). Each shingle is 16.5″ high by 52″ wide and covers 14.5″ high x 49.5″ wide once installed. To cover one square requires 20 Pine-Crest Shake panels.

Size

Actual: 16.5" high by 52" wide
Coverage: 14.5" high by 49.5" wide

Gauge & Weight

26 Gauge – 1.5 lb / Sq Ft

Warranty & Finish

Pine-Crest Shake carries a 50 year limited warranty which covers manufacturing defects, 120 MPH wind, and hail. This warranty is fully transferable to subsequent homeowners. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat and Aluminum-Zinc alloy coated steel.

Finish & Warranty

50 Years Limited
Fully Transferable

Reflectivity

4-11%
Vented Airspace Provides Insulation Layer

Purpose & Use

Tight fitting top and side flanges and time-tested fasteners into the vertical leg of the panel make Pine-Crest Shake a great choice for roofs as low as 3:12. Pine-Crest Shake is designed for installation on solid deck applications – with or without a batten airspace.

You’ll find Pine-Crest Shake most often on residential applications, but it also functions well for light commercial applications as well.

Pine-Crest Shake is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.

Minimum Slope

3:12

Substrate

Solid Deck – Direct to Deck
Solid Deck – Over Battens

Florida Approvals

Florida Building Code
Miami-Dade Hurricane Zone

Intent

Residential
Light Commercial

Colors

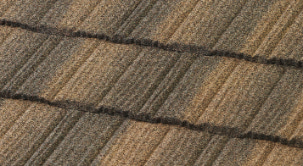

Country Blend

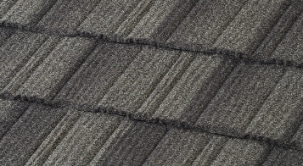

Ironwood

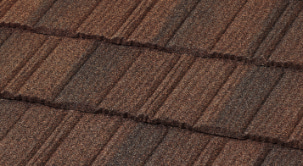

Barclay

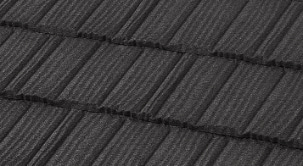

Charcoal

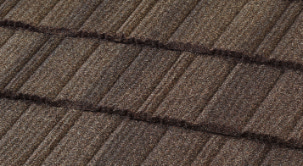

Timberwood
Gold River

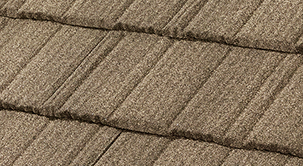

Harborwood

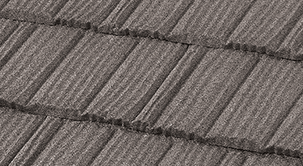

Stirling Gray

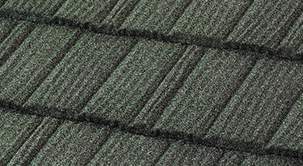

Sage Green (Special Order)

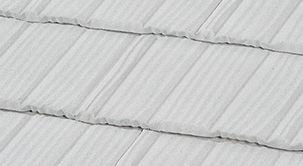

Dover (Premium)

Pine-Crest Shake® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.

Resources

Primarily PDF downloads, these resources provide general, installation, and testing data.

General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
Testing: Florida Approvals
FL# 27408.1
See report for requirements
Hi-Reflective

Pine-Crest Shake® finishes are not Hi-Reflective certified, though the system does feature a vented air space for insulation value.

Customer Reviews
140 Rgp Roof Russel W Pine Crest Shake Barclay 001

RGP Roof - Russel W. Yreka, California

I love the product. Working with it is great and the finished product was spectacular. It took three years to find a product my very picky customer liked and when we were finished with the install he actually tipped $2500. I look forward to using the product again.
